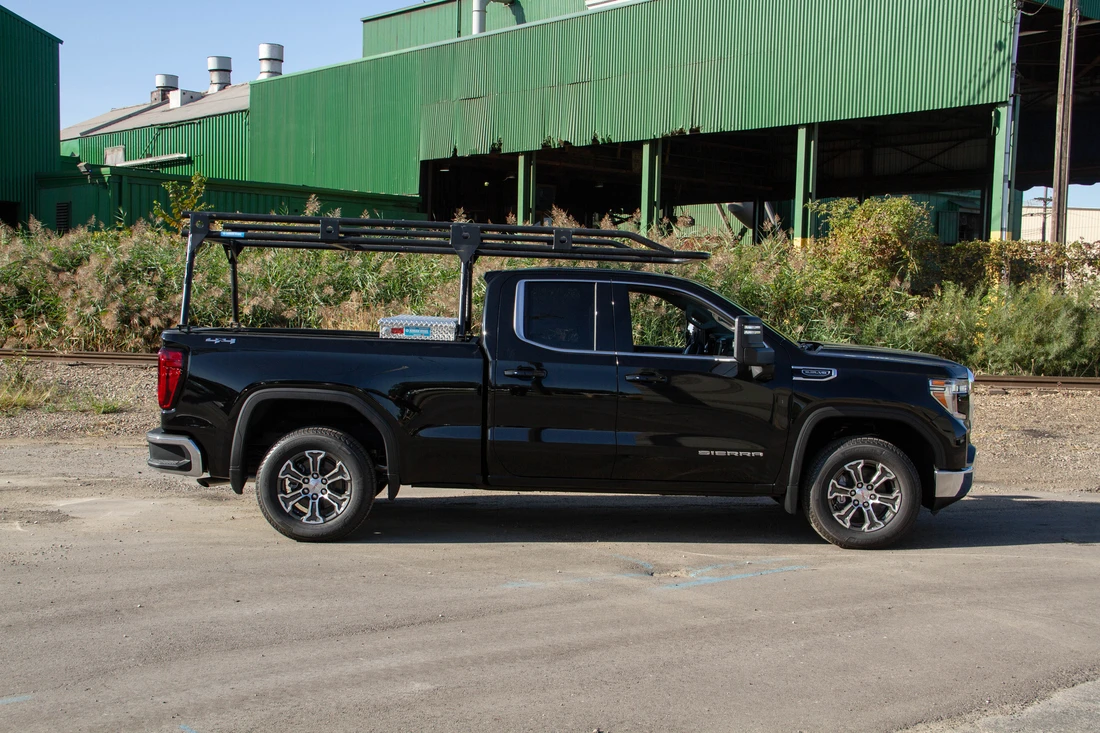

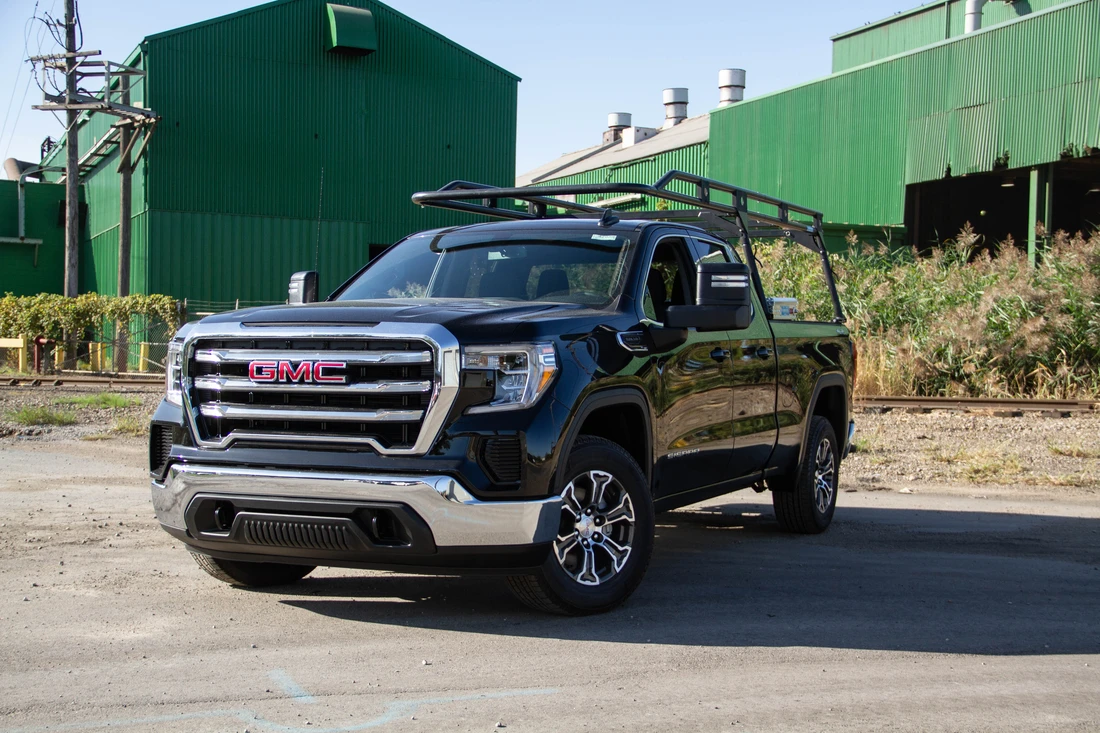

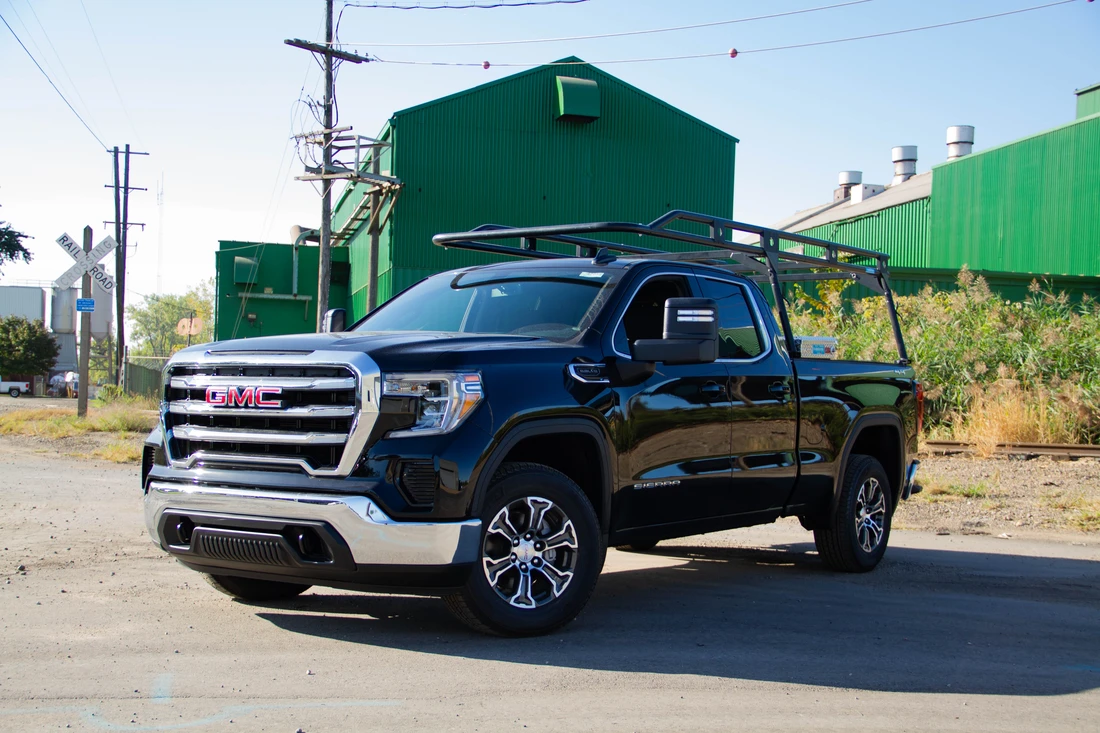

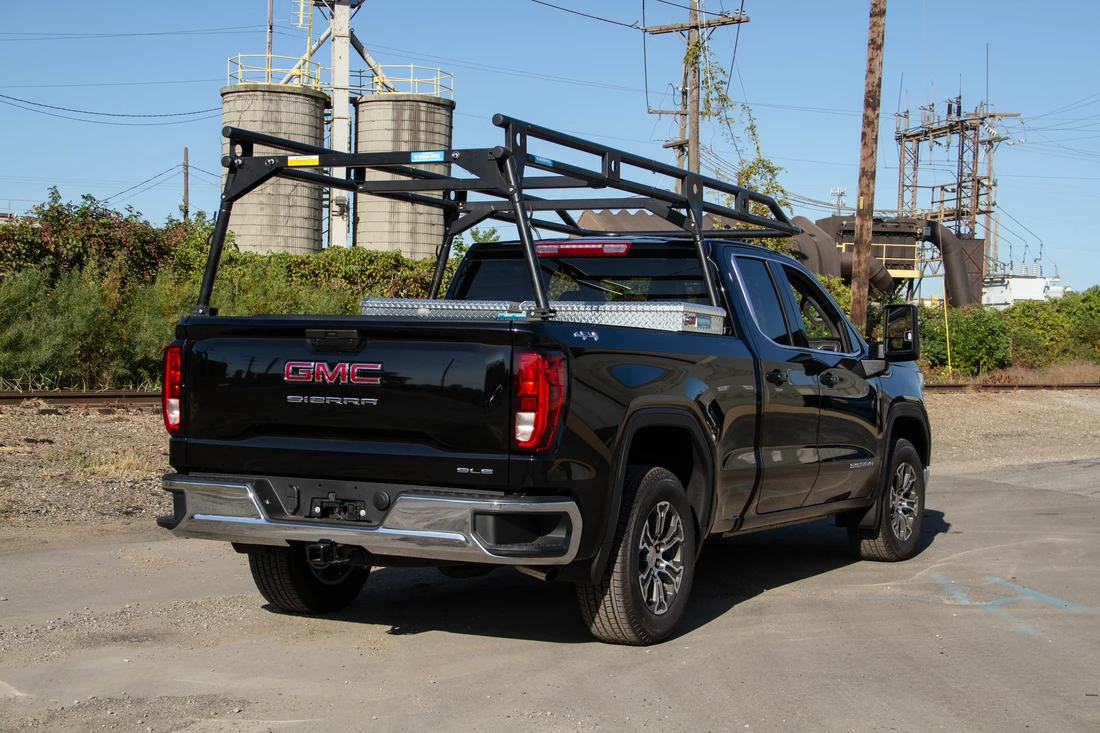

Load Runner Rack

Maximum Payload

With its beefy, two-inch, high-strength round tubing, the Load Runner is rated for the maximum load allowed by truck manufacturers.

Load Flexibility

The rear and middle crossbars can be removed to allow taller items or pallets to be carried in the truck bed.

Integrated Tie-Down Points

The Load Runner comes with four welded tie down cleats and full length top rails with perforated supports. Add-On ratchet straps are also available.


Please state make, model, year and lenght of pickup bed when ordering

Make Catalog # model a-dim b-dim
Chevy/GMC/DODGE/FORD RD/Nissan/07-om
Toyota Full-Siz/Regular Cab
SLR-8FR 8′ 89.75″ 25″
*SLR-6FR 6′ 69.75″ 25″
Chevy/GMC/DODGE/FORD RD/Nissan/07-om
Toyota Full-Siz/Extended Cab
SLR-8FE 8′ 89.75″ 25″
*SLR-6FE 6′ 69.75″ 25″
Ford Super Duty
Full-Size/Regular Cab
SLR-8FRS 8′ 89.75″ 29″
*SLR-6FRS 6′ 69.75″ 29″
Ford Super Duty
Full-Size/Extended Cab
SLR-8FES 8′ 89.75″ 29″
*SLR-6FES 6′ 69.75″ 29″

How to order tool box envelope

Rack dimensions for A (inside length) and B (inside height) are contained in the Load Runner rack fit Chart. Dimensions show available area for mounting cross and side boxes. Side rail height is 8” above cross supports. Cab over extension is 47” for regular cab models and 67” for extended cab models. For mounting tool boxes, use the following dimensions: A (inside length) and B (inside height) are contained

Note: Exterior ladder rack and accessory equipment can cause increased cab area noise on vans and pickups.

Load Runner Accessories

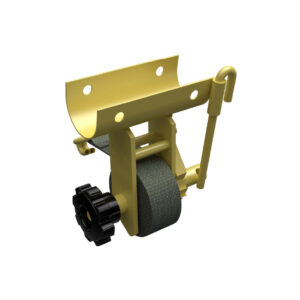

Round Tube Ratchet Strap

7’ canvas web strap rated at 600 lbs. with hook ratchets to tightly hold ladders and cargo to the rack.

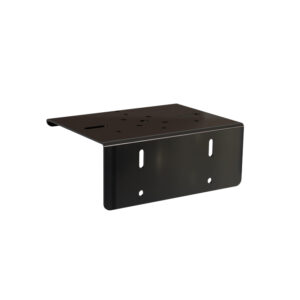

Beacon/Strobe Mounting Bracket

6″ x 9″ steel plate with stainless steel “U”-bolts that attach to cross bars or side rails for beacon or strobe lights.

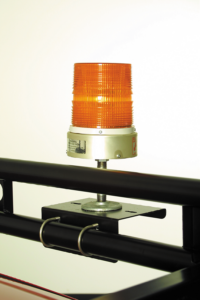

Load Runner Light Mount Kit

Galvanized stand with 4″ pipe attaches to the base of the light to raise it above the mounting surface. Includes BS2 for mounting to crossbars and side rails.

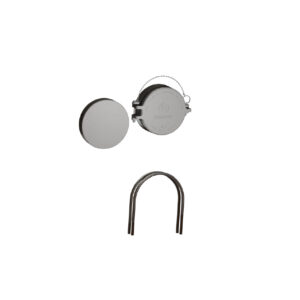

Conduit Kit w/ Round End Caps

Use with 4-1/2″ O.D. PVC pipe schedule 40. PVC tubing not supplied.

Conduit Kit

063” diamond tread aluminum construction. Two piece design features lift-up rear door with a spring assist for easy access and lockable swivel closure for security. Bolt-on plate enables access to front of carrier.

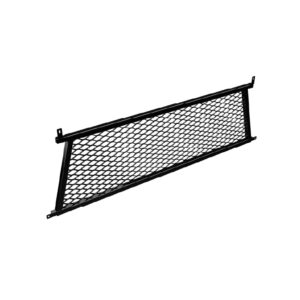

Load Runner Window Guard

Use with standard Load Runner for all Chevy/ GMC/ Ford Regular Duty pickups. Black powder coat paint.

Load Runner Window Guard

Use with Load Runner on Ford Super Duty only. Rugged 1.25″ x 1.25″, 13 gauge tube frame with expanded metal screening. Offers maximum visibility and superior strength from welded, no drill design. Black powder coat paint.
